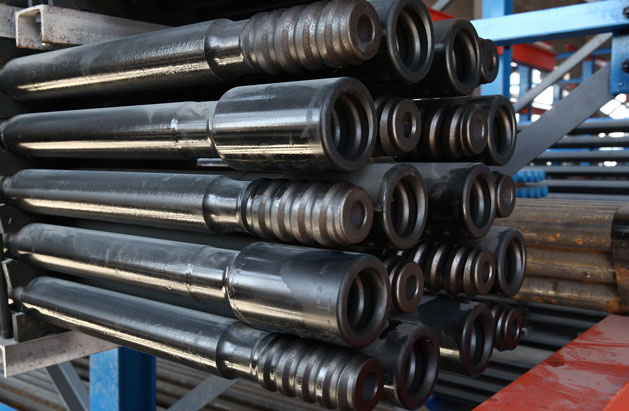

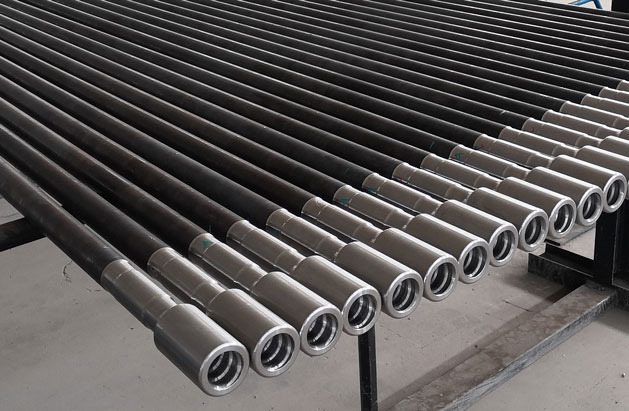

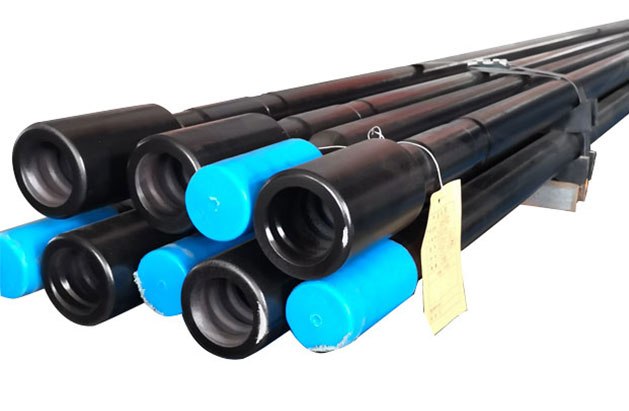

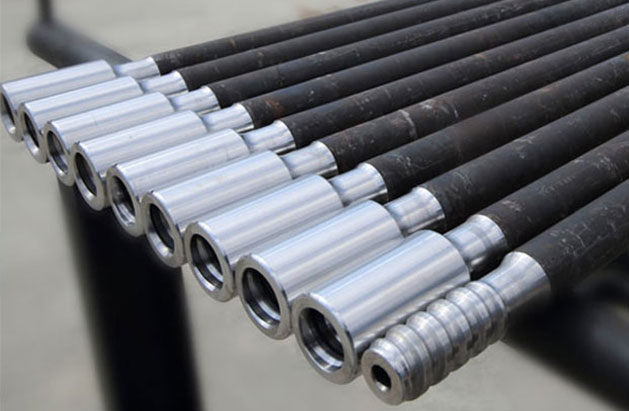

MF rod, also known as speed drill rod, features a male thread at one end and a female thread at the other end. It can directly connect to the shank adapter without the aid of a coupling sleeve, which eliminates the defect that the equal diameter thread connection is prone to vibration. The quick-change properties of male/female rods improve the overall drilling efficiency.
As an MF Rod manufacturer, we have two MF rod factories in China. Our MF drill rods are made of high-quality alloy steel and advanced thread manufacturing technology, and have excellent performance in wear resistance and flexibility. We offer speed drill rods with various threads, such as R23 MF drill rod, R32 MF drill rod, R38 MF rod, T35 MF rod, T38 MF drill rod, T45 MF rod, MF rod T51, GT60 MF drill rod, SR35 speed rod, etc.
Length | Diameter | Weight | Model No. | Part No. | |||
[mm] | [ft-in] | [mm] | [in] | [kg] | |||
 | 2095 | 6' 10 1/2" | 22 | 7/8″ | 6.4 | MF-R23-H22-2095 | 601-8221-102 |
MF rod, Hex 22, R23 - R23 | 3050 | 10' | 22 | 7/8″ | 10 | MF-R23-H22-3050 | 601-8230-202 |
Length | Diameter | Weight | Model No. | Part No. | |||
[mm] | [ft-in] | [mm] | [in] | [kg] | |||
 | 3050 | 10' | 25 | 1″ | 12.1 | MF-SR28-H25-3050 | 692-10930-202 |
MF rod, Hex 25, SR28 - SR28 | |||||||
 | 1200 | 3' 11 1/4" | 28 | 1 1/8″ | 6.2 | MF-SR28-H28-1200 | 692-11012-202 |
| MF rod, Hex 28, SR28 - SR28 | 2000 | 6' 6 3/4" | 28 | 1 1/8″ | 10.5 | MF-SR28-H28-2000 | 692-11020-202 |
Length | Diameter | Weight | Model No. | Part No. | |||
[mm] | [ft-in] | [mm] | [in] | [kg] | |||
| 915 | 3' | 32 | 1 1/4″ | 5.5 | MF-R32-D32-915 | 605-6909-202 |
MF rod, Round 32, R32 - R32 | 1220 | 4' | 32 | 1 1/4″ | 7.5 | MF-R32-D32-1220 | 605-6912-202 |
1525 | 5' | 32 | 1 1/4″ | 9.1 | MF-R32-D32-1525 | 605-6915-202 | |
1830 | 6' | 32 | 1 1/4″ | 11 | MF-R32-D32-1830 | 605-6918-202 | |
3050 | 10' | 32 | 1 1/4″ | 18 | MF-R32-D32-3050 | 605-6930-202 | |
3660 | 12' | 32 | 1 1/4″ | 21 | MF-R32-D32-3660 | 605-6937-202 | |
| 3700 | 12' 1 5/8″ | 35 | 1 3/8″ | 29 | MF-T38/R32-H35-3700 | 622-7237-202 |
MF Drifter rod, Hex 35, T38 - R32 | 4305 | 14' 1 1/2″ | 35 | 1 3/8″ | 34 | MF-T38/R32-H35-4305 | 622-7243-202 |
Length | Diameter | Weight | Model No. | Part No. | |||
[mm] | [ft-in] | [mm] | [in] | [kg] | |||
| 1830 | 6' | 39 | 1 1/2″ | 16 | MF-T35-D39-1830 | 621-8718-202 |
MF rod, Round 39, T35 - T35 | 3050 | 10' | 39 | 1 1/2″ | 25 | MF-T35-D39-3050 | 621-8730-202 |
3660 | 12' | 39 | 1 1/2″ | 32 | MF-T35-D39-3660 | 621-8737-202 | |
4265 | 14' | 39 | 1 1/2″ | 35 | MF-T35-D39-4265 | 621-8743-202 | |
4875 | 16' | 39 | 1 1/2″ | 40 | MF-T35-D39-4875 | 621-8749-202 | |
 | 4305 | 14' 1 1/2″ | 39 | 1 1/2″ | 35 | MF-T35/R35-D39-4305 | 621-7543-202 |
MF Drifter rod, Round 39, T35 - R35 | 4915 | 16' 1 1/2″ | 39 | 1 1/2″ | 40 | MF-T35/R35-D39-4915 | 621-7549-202 |
| 5525 | 18' 1 1/2″ | 39 | 1 1/2″ | 45 | MF-T35/R35-D39-5525 | 621-7555-202 | |
| 6135 | 20' 1 1/2″ | 39 | 1 1/2″ | 50 | MF-T35/R35-D39-6135 | 621-7561-202 | |
Length | Diameter | Weight | Model No. | Part No. | |||
[mm] | [ft-in] | [mm] | [in] | [kg] | |||
| 915 | 3' | 39 | 1 1/2″ | 8.1 | MF-T38-D39-915 | 622-7709-202 |
MF rod, Round 39, T38 - T38 | 1220 | 4' | 39 | 1 1/2″ | 11 | MF-T38-D39-1220 | 622-7712-202 |
1525 | 5' | 39 | 1 1/2″ | 12 | MF-T38-D39-1525 | 622-7715-202 | |
1830 | 6' | 39 | 1 1/2″ | 15 | MF-T38-D39-1830 | 622-7718-202 | |
3050 | 10' | 39 | 1 1/2″ | 25 | MF-T38-D39-3050 | 622-7730-202 | |
3660 | 12' | 39 | 1 1/2″ | 30 | MF-T38-D39-3660 | 622-7737-202 | |
4265 | 14' | 39 | 1 1/2″ | 36 | MF-T38-D39-4265 | 622-7743-202 | |
4875 | 16' | 39 | 1 1/2″ | 41 | MF-T38-D39-4875 | 622-7749-202 | |
Length | Diameter | Weight | Model No. | Part No. | |||
[mm] | [ft-in] | [mm] | [in] | [kg] | |||
| 1830 | 6' | 39 | 1 1/2″ | 15.3 | MF-SR38-D39-1830 | 694-11118-202 |
MF rod, Round 39, SR38 - SR38 | 3050 | 10' | 39 | 1 1/2″ | 25 | MF-SR38-D39-3050 | 694-11130-202 |
| 4920 | 16' 1 3/4" | 39 | 1 1/2″ | 40 | MF-SR38-D39-4920 | 694-11149-202 | |
Length | Diameter | Weight | Model No. | Part No. | |||
[mm] | [ft-in] | [mm] | [in] | [kg] | |||
| 1220 | 4' | 46 | 1 3/4″ | 14 | MF-T45-D46-1220 | 623-7912-202 |
MF rod, Round 46, T45 - T45 | 1525 | 5' | 46 | 1 3/4″ | 18 | MF-T45-D46-1525 | 623-7915-202 |
1830 | 6' | 46 | 1 3/4″ | 21 | MF-T45-D46-1830 | 623-7918-202 | |
3050 | 10' | 46 | 1 3/4″ | 35 | MF-T45-D46-3050 | 623-7930-202 | |
3660 | 12' | 46 | 1 3/4″ | 41 | MF-T45-D46-3660 | 623-7937-202 | |
4265 | 14' | 46 | 1 3/4″ | 48 | MF-T45-D46-4265 | 623-7943-202 | |
6095 | 20' | 46 | 1 3/4″ | 69 | MF-T45-D46-6095 | 623-7961-202 | |
Length | Diameter | Weight | Model No. | Part No. | |||
[mm] | [ft-in] | [mm] | [in] | [kg] | |||
| 1525 | 5' | 52 | 2″ | 23 | MF-T51-D52-1525 | 624-8015-202 |
MF rod, Round 52, T51 - T51 | 1830 | 6' | 52 | 2″ | 27 | MF-T51-D52-1830 | 624-8018-202 |
3660 | 12' | 52 | 2″ | 50 | MF-T51-D52-3660 | 624-8037-202 | |
4265 | 14' | 52 | 2″ | 57 | MF-T51-D52-4265 | 624-8043-202 | |
5485 | 17’11″ | 52 | 2″ | 72 | MF-T51-D52-5485 | 624-8055-202 | |
6095 | 20' | 52 | 2″ | 87 | MF-T51-D52-6095 | 624-8061-202 | |
Length | Diameter | Weight | Model No. | Part No. | |||
[mm] | [ft-in] | [mm] | [in] | [kg] | |||
 | 3660 | 12' | 60 | 2 3/8″ | 73 | MF-GT60-D60-3660 | 661-10037-202 |
MF rod, Round 60, GT60 - GT60 | 4265 | 14' | 60 | 2 3/8″ | 86 | MF-GT60-D60-4265 | 661-10043-202 |
5485 | 18' | 60 | 2 3/8″ | 107 | MF-GT60-D60-5485 | 661-10055-202 | |
6095 | 20' | 60 | 2 3/8″ | 120 | MF-GT60-D60-6095 | 661-10061-202 | |
 | 4265 | 14' | 64 | 2 1/2″ | 92 | MF-GT60-D64-4265 | 661-10143-202 |
MF rod, Round 64, GT60 - GT60 | |||||||
Features:
· Integrated Coupling: MF rods have a male thread on one end and a female thread on the other, eliminating the need for separate coupling sleeves.
· Enhanced Rigidity: The integrated design provides better rigidity and alignment, improving drilling accuracy and efficiency.
· Ease of Use: Simplifies the connection process, reducing the time and effort required for rod assembly and disassembly.
Applications
· Long-Hole Drilling: Ideal for long-hole drilling in mining and construction where precise and straight holes are required.
· Production Drilling: Used in production drilling for achieving deep and accurate boreholes with minimal deviation.
· High-Precision Drilling: Suitable for applications demanding high precision and straightness, such as pre-splitting in quarrying.
Characteristics:
· Reduced Coupling Wear: The integrated threads minimize wear and tear on coupling sleeves, extending the rod's service life.
· Improved Hole Straightness: The design ensures better alignment and reduces hole deviation, essential for precise drilling applications.
· Compatibility: Compatible with a wide range of drilling rigs and bits, enhancing versatility and operational efficiency.
Litian is a professional manufacturer focused on the production of rock drilling tools and excavation tools.
