In top hammer drilling, T38-R32 dual-thread drill rods are commonly referred to as Drifter Rods due to their compatibility with drilling rigs and their functional integration with drifters. As a type of Drilling Rig Tool, T38-R32 drifter rods are designed to withstand high-impact forces, transfer high torque, and deliver outstanding performance under harsh working conditions.
Mining Operations
T38-R32 Drifter Drill Rods are widely used in mining for drilling and blasting operations. They are suitable for various rock formations and ore types, particularly in high-impact and high-abrasion drilling tasks common in mining excavation.
Tunnel Construction
In tunnel construction, T38-R32 Drifter Rods provide effective drilling capabilities. They excel in handling different geological layers during the drilling process and offer excellent flexibility in adapting to various drill bit connections.
Infrastructure Construction and Geological Exploration
T38-R32 Drifter Drill Rods are used in infrastructure projects for drilling operations in rock layers of varying depths and hardness. They provide precise boreholes for subsequent blasting or geological surveys.
Water Well and Coal Mining Drilling
As drilling rig tools, T38-R32 Drifter Rods are ideal for drilling operations requiring high load-bearing capacity. They demonstrate exceptional stability and efficiency in deep well drilling and coal mining applications.
High Strength and Durability
Made from premium alloy steel, T38-R32 drifter drill rods feature excellent tensile strength and wear resistance, ensuring long service life in demanding drilling operations.
Superior Stability
T38-R32 drifter drill rods maintain stable drilling performance in high-impact working environments, minimizing vibrations and deviations, and enhancing borehole precision.
Wide Adaptability
T38-R32 drifter rods can operate effectively under various rock hardness and geological conditions, offering extensive versatility.
High Efficiency
With optimized design and material composition, T38-R32 drill rods significantly improve drilling efficiency, reducing both operation time and costs.
Reliable Connectivity
The connection system of T38-R32 drifter drill rods is thoughtfully designed to facilitate quick replacement and maintenance, enhancing operational continuity and safety.
As a professional manufacturer of top hammer drill rods, Litian’s products are known for their stable quality, long service life, and cost-effectiveness. We produce various types of T38-R32 Drifter Rods, tailored to meet different drilling requirements. Below are the specifications of our commonly used models.
Drifter rod, Hex 32, T38 - R32
Length | Diameter | Model No | Similar P/N | |||
mm | feet/inch | mm | inch | Sandvik | Epiroc | |
2400 | 7' 10" | 32 | 1 1/4" | T38/R32-H32-2400 | 90515439 | |
2475 | 8' 1 1/2" | 32 | 1 1/4" | T38/R32-H32-2475 | ||
2700 | 8' 10 1/4" | 32 | 1 1/4" | T38/R32-H32-2700 | 90029516 | |
3090 | 10' 1 5/8" | 32 | 1 1/4" | T38/R32-H32-3090 | 7324-8631-20 | 90500107 |
3700 | 12' 1 5/8" | 32 | 1 1/4" | T38/R32-H32-3700 | 7324-8637-20 | 90590043 |
4305 | 14' 1 1/2" | 32 | 1 1/4" | T38/R32-H32-4305 | 7324-8643-20 | 90500213 |
4915 | 16' 1 1/2" | 32 | 1 1/4" | T38/R32-H32-4915 | 90500046 | |
6400 | 21' | 32 | 1 1/4" | T38/R32-H32-6400 |
Drifter rod, Hex 35, T38 - R32
Length | Diameter | Model No | Similar P/N | |||
mm | feet/inch | mm | inch | Sandvik | Epiroc | |
1830 | 6' | 35 | 1 3/8" | T38/R32-H35-1830 | ||
2475 | 8' 1 1/2" | 35 | 1 3/8" | T38/R32-H35-2475 | 7324-9624-20 | |
2785 | 9' 1 5/8" | 35 | 1 3/8" | T38/R32-H35-2785 | 7324-96278-20 | |
3090 | 10' 1 5/8" | 35 | 1 3/8" | T38/R32-H35-3090 | 7324-9631-20 | 90504392 |
3700 | 12' 1 5/8" | 35 | 1 3/8" | T38/R32-H35-3700 | 7324-9637-20 | 90502308 |
4305 | 14' 1 1/2" | 35 | 1 3/8" | T38/R32-H35-4305 | 7324-9643-20 | 90500862 |
4915 | 16' 1 1/2" | 35 | 1 3/8" | T38/R32-H35-4915 | 7324-9649-20 | |
5525 | 18' 1 1/2" | 35 | 1 3/8" | T38/R32-H35-5525 | 7324-9655-20 | |
6135 | 20' 1 1/2" | 35 | 1 3/8" | T38/R32-H35-6135 | 7324-9661-20 | |
6440 | 21' 1 1/2" | 35 | 1 3/8" | T38/R32-H35-6440 | 7324-9664-20 |

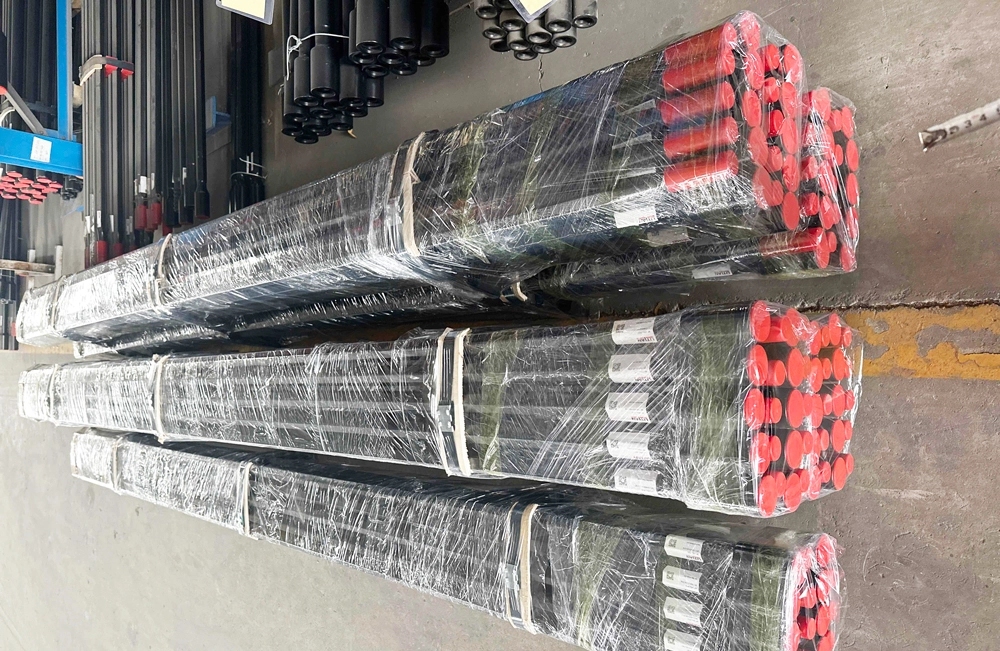

MF Drifter rod (Drifter speed rod), Hex 35, T38 - R32
Length | Diameter | Model No | Similar P/N | |||
mm | feet/inch | mm | inch | Sandvik | Epiroc | |
3700 | 12' 1 5/8" | 35 | 1 3/8" | MF-T38/R32-H35-3700 | 7324-6537-20 | 90503939 |
4305 | 14' 1 1/2" | 35 | 1 3/8" | MF-T38/R32-H35-4305 | 7324-6543-20 | 90503663 |
4915 | 16' 1 1/2" | 35 | 1 3/8" | MF-T38/R32-H35-4915 | 90503563 | |
5525 | 18' 1 1/2" | 35 | 1 3/8" | MF-T38/R32-H35-5525 | 90503940 |
