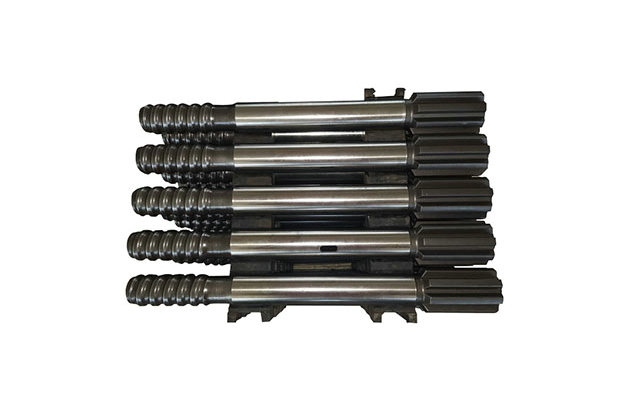

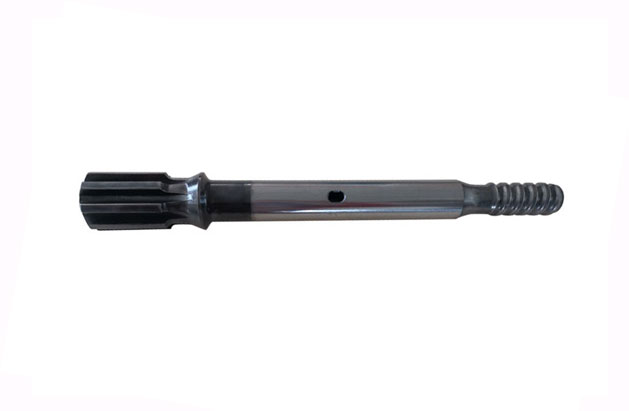

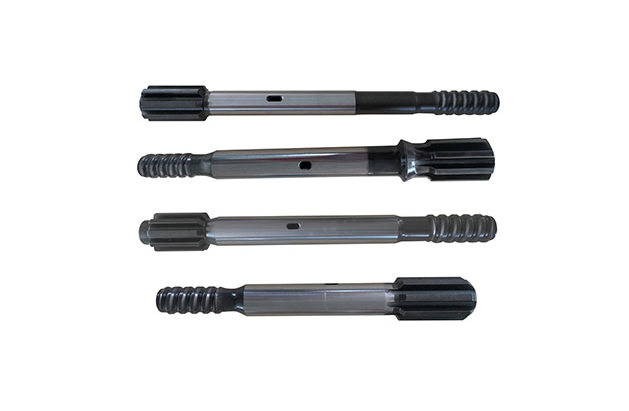

Shank Adapter HC

Name: Shank Adapter HC
Brand: Litian Heavy Industry Machinery Co., Ltd

Litian shank adapters use high-quality alloy structural steel, and adopt a complete set of mature technology such as advanced surface treatment technology, smelting technology, and mechanical processing technology, which can greatly reduce the loss of energy in transmission and make the rock drilling speed fast.

Our shank adapters are suitable for various brands of rock drills, such as Montabert rock drills: HC80, HC90, HC105, HC120, HC80RP, HC105RP, HC107RP, HC108RP, HC109RP, HC110, HC120RP, HC150RP, HC155RP, HC158RP rock drill, etc.

We can also design and produce various specifications of rock drill shank adapters according to your needs.



Specification Of Shank Adapter

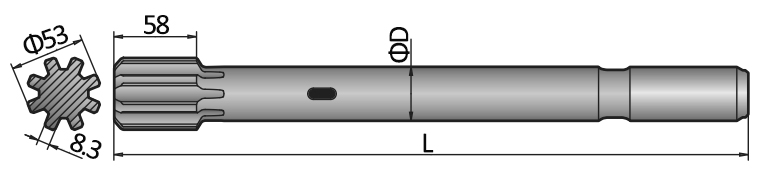

Montabert

Montabert HC 40, HC 50

App.	Thread	Length	Diameter	Weight	Model No.	Similar Product Part No.
		[mm]	[mm]	[kg]		Sandvik / Atlas Copo
BO/DT	R32	370	38	3.0	R32*8D38-370	90515895
BO/DT	R38	370	38	3.3	R38*8D38-370	90515966
BO/DT	T38	370	38	3.2	T38*8D38-370	90515989
BE	R32	445	38	3.5	R32*8D38-445	7803-4725-01 / 90515894
BE	R38	445	38	4.0	R38*8D38-445	90515965
BE	T38	445	38	4.8	T38*8D38-445	7304-4725-01 / 90515988

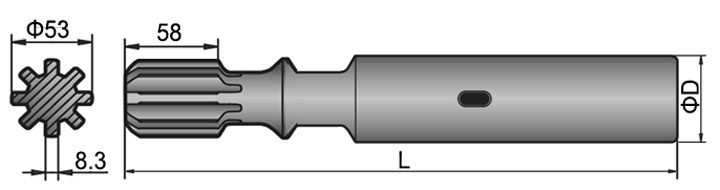

Montabert HC 40, HC 50 (female)

App.	Thread	Length	Diameter	Weight	Model No.	Similar Product Part No.
		[mm]	[mm]	[kg]		Sandvik / Atlas Copo
BO/DT	R32	270	45	2.8	R32F*8D45-270	7803-4726-01
BO/DT	T38	320	55	4.1	T38F*8D55-320	90516183

Montabert HC 95

App.	Thread	Length	Diameter	Weight	Model No.	Similar Product Part No.
		[mm]	[mm]	[kg]		Sandvik / Atlas Copo
PD/DT	T38	512	45	5.8	T38*8D45-512
PD/DT	T45	512	45	6.1	T45*8D45-512

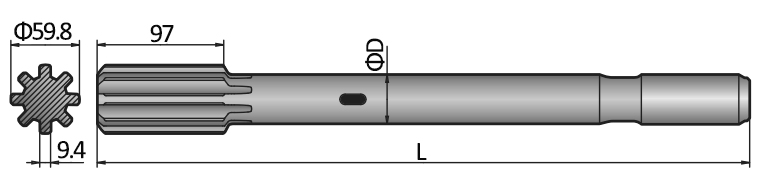

Montabert HC 109

App.	Thread	Length	Diameter	Weight	Model No.	Similar Product Part No.
		[mm]	[mm]	[kg]		Sandvik / Atlas Copo
BE/DT	R38	460	45	5.2	R38*8D45-460
BE/DT	T38	460	45	5.2	T38*8D45-460
BE/DT	T38	490	45	5.5	T38*8D45-490

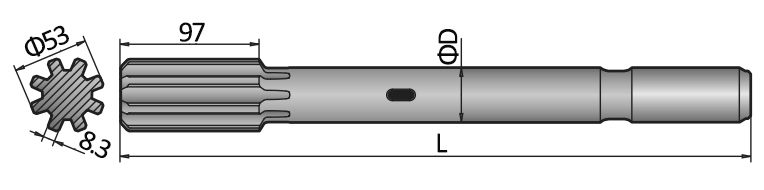

Montabert HC 80, HC 90, HC 105, HC 120

App.	Thread	Length	Diameter	Weight	Model No.	Similar Product Part No.
		[mm]	[mm]	[kg]		Sandvik / Atlas Copo
DT	R32	440	38	3.6	R32*8D38-440	7803-4720-01 / 90515893
DT	R38	440	38	3.9	R38*8D38-440	7804-4720-01 / 90515964
DT	T38	440	38	3.9	T38*8D38-440	7304-4720-01 / 90515985

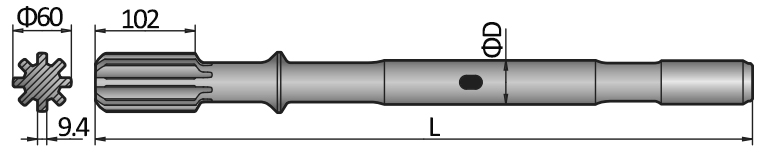

Montabert HC 80 RP, HC 105 RP, HC 107 RP, HC 108 RP, HC 109 RP

App.	Thread	Length	Diameter	Weight	Model No.	Similar Product Part No.
		[mm]	[mm]	[kg]		Sandvik / Atlas Copo
BE	T38	670	45	7.2	T38*8D45-670	7304-7544-01 / 90516522
BE	T45	670	45	7.5	T45*8D45-670	90516213

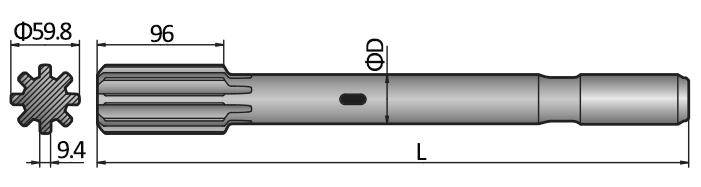

Montabert HC 110

App.	Thread	Length	Diameter	Weight	Model No.	Similar Product Part No.
		[mm]	[mm]	[kg]		Sandvik / Atlas Copo
BE	T38	420	45	4.8	T38*8D45-420

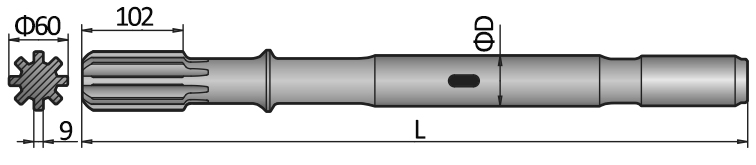

Montabert HC 120 RP, HC 150 RP, HC 155 RP, HC 158 RP

App.	Thread	Length	Diameter	Weight	Model No.	Similar Product Part No.
		[mm]	[mm]	[kg]		Sandvik / Atlas Copo
BE	T45	670	51	8.8	T45*8D51-670	90516212
BE	T51	670	51	8.9	T51*8D51-670	7306-7528-02 / 90516218
