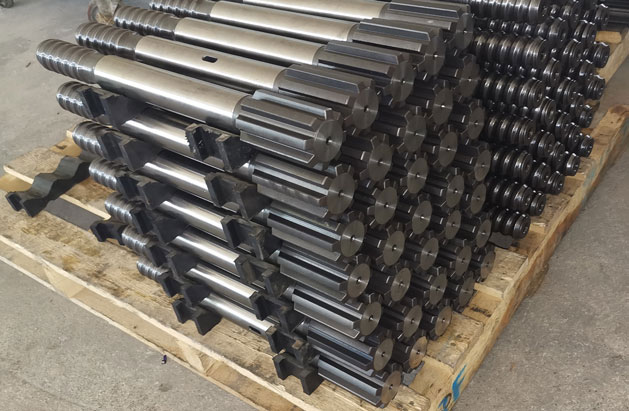

Shank Adapters

Litian Rock Tools can design and produce shank adapters for various brands of rock drills to meet the needs of different customers.

Specification Of Shank Adapter

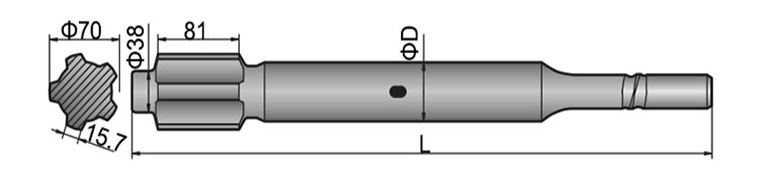

Boart HD 155



App.

Thread

Length

Diameter

Weight

Model No.

Similar Product Part No.




[mm]

[mm]

[kg]


Sandvik / Atlas Copo

Boart HD 155

DT

R32

580

55

8.6

R32*5D55-580

            / 90516275

DT

T38

580

55

8.7

T38*5D55-580

            / 90003580

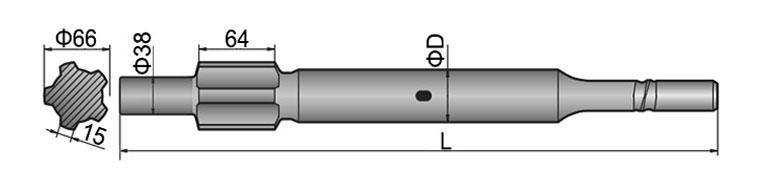

Boart HD 125, HD150, HD160

App.

Thread

Length

Diameter

Weight

Model No.

Similar Product Part No.




[mm]

[mm]

[kg]


Sandvik / Atlas Copo

Boart HD 125, HD150, HD160

DT

R38

495

45

5.5

R38*5D45-495

7804-4993-01 /

DT

T38

495

45

5.5

T38*5D45-495

7304-4993-01 /

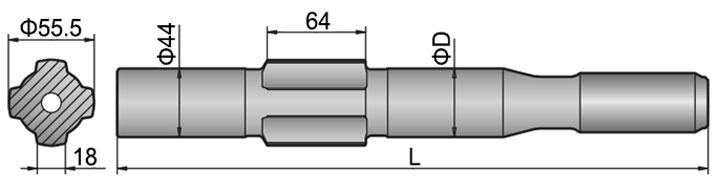

Gardner Denver PR 123

App.

Thread

Length

Diameter

Weight

Model No.

Similar Product Part No.




[mm]

[mm]

[kg]


Sandvik / Atlas Copo

Gardner Denver PR 123

DT,BE

R32

330

44

3.0

R32*4D44-330

7803-7500-61 /

DT,BE

R32

380

44

3.4

R32*4D44-380

7803-7543-60 / 90516084

DT,BE

T38

380

44

3.7

T38*4D44-380

7304-7543-60 / 90516115

DT,BE

T38

446

44

4.0

T38*4D44-446

7304-7500-60 / 90516116

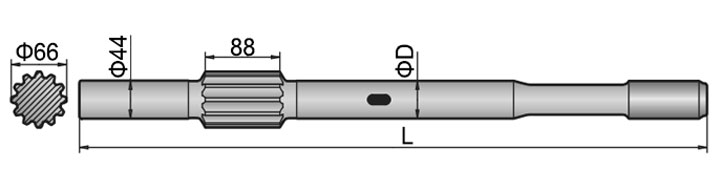

Gardner Denver HPR 1H

App.

Thread

Length

Diameter

Weight

Model No.

Similar Product Part No.




[mm]

[mm]

[kg]


Sandvik / Atlas Copo

Gardner Denver HPR 1H

DT,BE

T45

745

44

8.7

T45*12D44-745

7305-4883-01 / 90516295

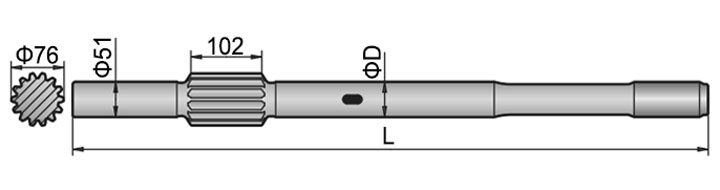

Gardner Denver HPR 2

App.

Thread

Length

Diameter

Weight

Model No.

Similar Product Part No.




[mm]

[mm]

[kg]


Sandvik / Atlas Copo

Gardner Denver HPR 2

DT,BE

T51

916

51

14

T51*14D51-916

 7306-4885-02 / 90516322

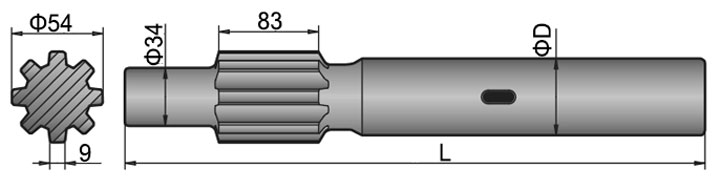

Hydrastar 200

App.

Thread

Length

Diameter

Weight

Model No.

Similar Product Part No.




[mm]

[mm]

[kg]


Sandvik / Atlas Copo

Hydrastar 200

BO,DT

R32

351

45

3.7

R32F*8D45-351

7803-4703-01 /


Hydrastar 200,300 and X2

App.

Thread

Length

Diameter

Weight

Model No.

Similar Product Part No.




[mm]

[mm]

[kg]


Sandvik / Atlas Copo

Hydrastar 200,300 and X2

DT

R32

485

38

3.9

R32*8D38-485

7803-3590-03 /

DT

R38

485

38

4.1

R38*8D38-485

7804-3590-03 /

DT

T38

485

38

4.1

T38*8D38-485

7304-3590-03 /

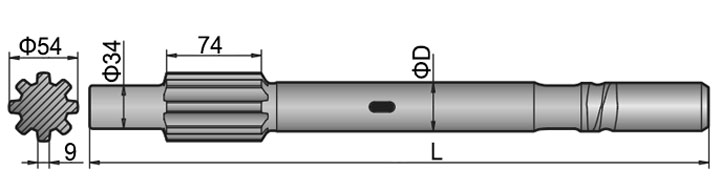

Hydrastar 350

App.

Thread

Length

Diameter

Weight

Model No.

Similar Product Part No.




[mm]

[mm]

[kg]


Sandvik / Atlas Copo

Hydrastar 350

DT

R38

485

38

4.1

R38*8D38-485

7804-3590-03 /

BE

T38

500

38

4.8

T38*8D38-500

7304-3591-01 /

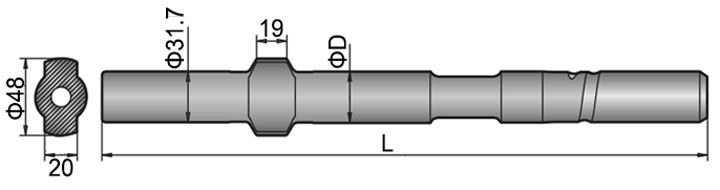

Joy 400 RR

App.

Thread

Length

Diameter

Weight

Model No.

Similar Product Part No.




[mm]

[mm]

[kg]


Sandvik / Atlas Copo

Joy 400 RR

BE

R32

380

32

2.1

R32*2D32-380

/ 90515858

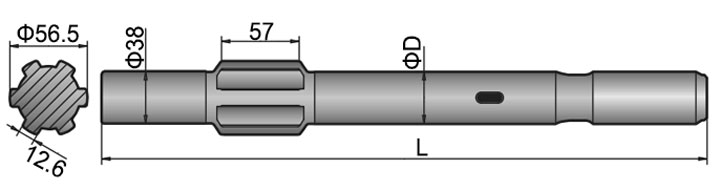

Joy JH 2

App.

Thread

Length

Diameter

Weight

Model No.

Similar Product Part No.




[mm]

[mm]

[kg]


Sandvik / Atlas Copo

Joy JH 2

DT

T38

440

38

4.0

T38*6D38-440

            / 90516117

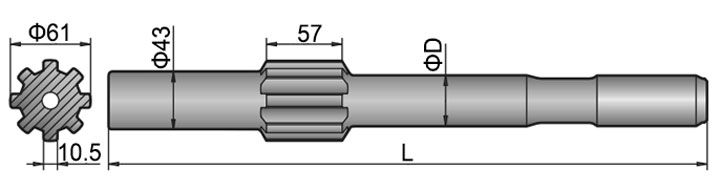

Joy VCR 260

App.

Thread

Length

Diameter

Weight

Model No.

Similar Product Part No.




[mm]

[mm]

[kg]


Sandvik / Atlas Copo

Joy VCR 260

DT

T38

451

38

3.9

T38*8D38-451

           / 90516182


Krupp HB 51

App.

Thread

Length

Diameter

Weight

Model No.

Similar Product Part No.




[mm]

[mm]

[kg]


Sandvik / Atlas Copo

Krupp HB 51

BE

R32

380

32

2.1

R32*2D32-380

/ 90515858

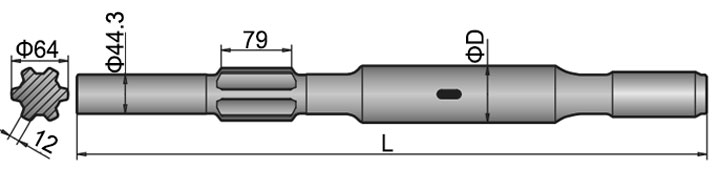

Krupp HB 101

App.

Thread

Length

Diameter

Weight

Model No.

Similar Product Part No.




[mm]

[mm]

[kg]


Sandvik / Atlas Copo

Krupp HB 101


BE

T38

690

64

10.9

T38*6D64-690

/ 90516281

BE

T45

690

64

11.0

T45*6D64-690

/ 90516298

BE

T51

711

64

11.7

T51*6D64-711

/ 90516312

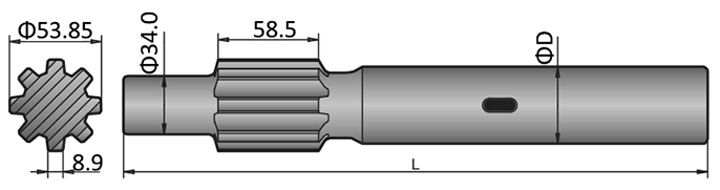

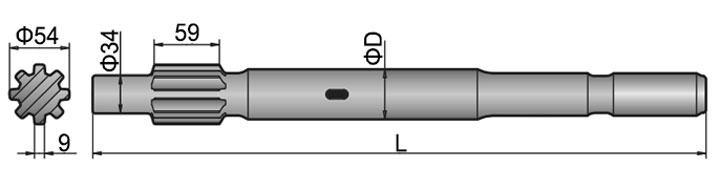

SIG HBM 50,100,and 120

App.

Thread

Length

Diameter

Weight

Model No.

Similar Product Part No.




[mm]

[mm]

[kg]


Sandvik / Atlas Copo

SIG HBM 50,100,and 120

BO

R32

340

45

3.4

R32F*8D45-340

7803-3588-01 /

SIG HBM 50,100,and 120

BO

R32

550

45

4.8

R32*8D45-550

7803-3576-01 /

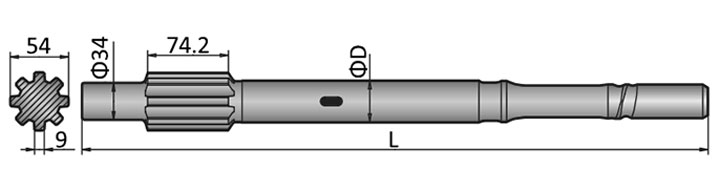

SIG 101

App.

Thread

Length

Diameter

Weight

Model No.

Similar Product Part No.




[mm]

[mm]

[kg]


Sandvik / Atlas Copo

SIG 101

BE

R32

500

38

4.1

R32*8D38-500

7803-3591-01 /

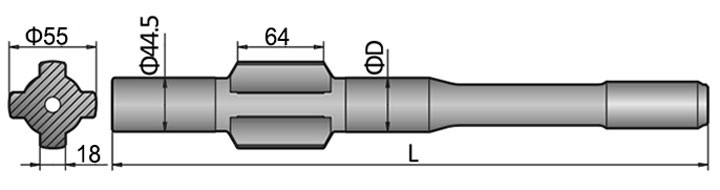

Toyo PR220

App.

Thread

Length

Diameter

Weight

Model No.

Similar Product Part No.




[mm]

[mm]

[kg]


Sandvik / Atlas Copo

Toyo PR220


BE

R32

330

44

3.0

R32*4D44-330

7803-7500-61 /

BE

T38

446

44

4.0

T38*4D44-446

7304-7500-60 /

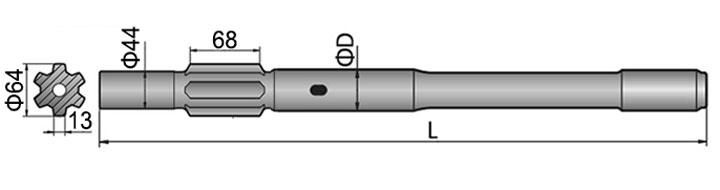

Toyo TH 501

App.

Thread

Length

Diameter

Weight

Model No.

Similar Product Part No.




[mm]

[mm]

[kg]


Sandvik / Atlas Copo

Toyo TH 501

BE

T38

565

45

5.8

T38*6D45-565

7304-7583-40 /

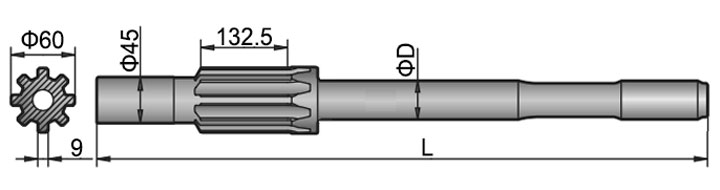

Toyo TH800RP

App.

Thread

Length

Diameter

Weight

Model No.

Similar Product Part No.




[mm]

[mm]

[kg]


Sandvik / Atlas Copo

Toyo TH800RP

BE

T38

766

45

8.8

T38*8D45-766

7304-7588-01 /



Can't find the shank adapter you want? Please contact us! ↓
